Metal racks 215.06
 |
- Stainless steel racks consist of two legs and screw-on shelves. The legs are made of profile 40x2 and feature standard adjustable feet allowing to adjust the rack height (about 30 mm). The shelves are height adjustable by ± 100 mm, are made of P1.5 metal sheet and may be solid or perforated. The maximum permissible load applied onto the shelves is 50 kg/shelf; the rack has a maximum permissible load-bearing capacity of 250 kg. When setting up two or more racks, the central legs are shared by two racks.
 |
 |
 |

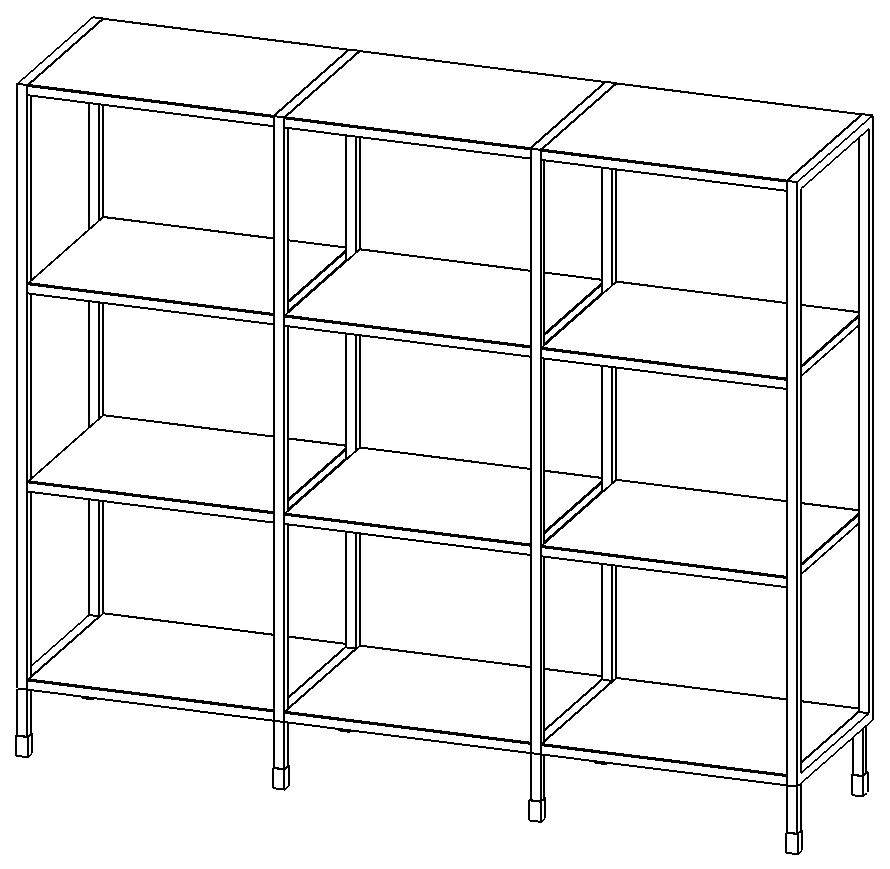

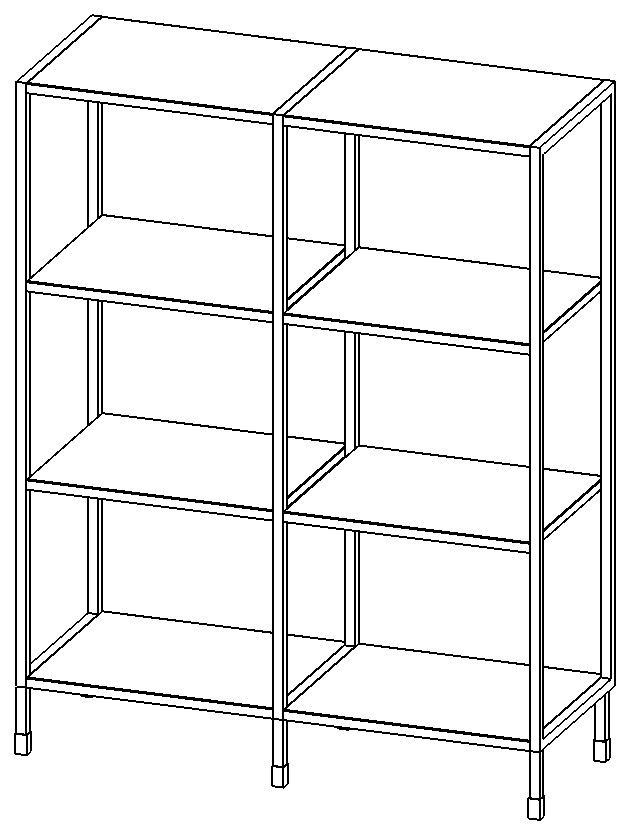

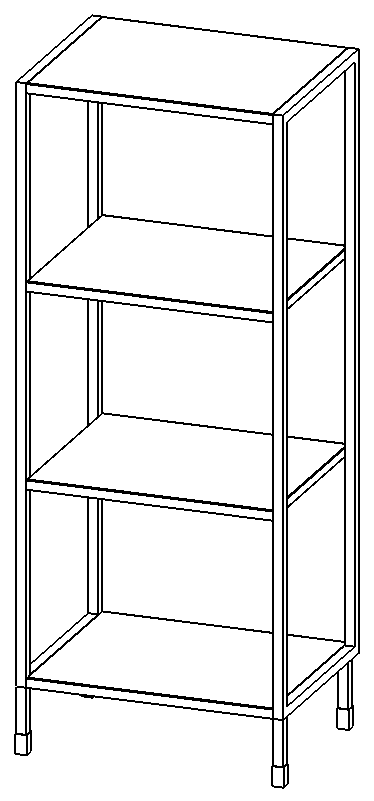

| Rack | Two-rack assembly | Three-rack assembly |
TECHNICAL DATA
| Rack designation |
|---|
| GMP rack |
| Type of rack design |
|---|
| Implementation in GMP standard |
| Rack for temperature resistant-chamber GMP |
| Type of rack |
|---|
| Basic rack. The shelf width corresponds to the shelf width plus 60 mm. |
| Additional rack. The shelf width corresponds to the shelf width plus 30 mm. |
| Frame hue and material |
|---|
| Stainless steel AISI 304 |
| Other material frame design |
| Shelf hue and material |
|---|
| Stainless steel AISI 304 |
| Stainless steel AISI 316 |
| Other material shelf design |
| Shelf width A´ | |
|---|---|
| width | value |
| 640 mm | Shelf width |
| 740 mm | Shelf width |
| 840 mm | Shelf width |
| 940 mm | Shelf width |
| Depth B | |
|---|---|
| depth | value |
| 400 mm | Rack depth |
| 500 mm | Rack depth |
| 600 mm | Rack depth |
| The TRK rack, which is anchored to the partition, is supplemented with a distance. The shelf depth is increased by 50 mm. The shelf depth of the shelf remains the same. | |
| Height C | |
|---|---|
| height | value |
| 1800 mm | Rack height |
| 2000 mm | Rack height |
| Type of shelf |
|---|
| Smooth shelf |
| Perforated Shelf - Oval Holes * |
| Shelf load capacity |
|---|
| Shelf load capacity 50 kg |
| Shelf load capacity 90 kg |
| Number of shelves in rack |
|---|
| Number of shelves in rack |
| Number of shelves in rack |
| Number of shelves in rack |
| Number of shelves in rack |
| * Optimal number of shelves for a height of 1800 mm ** Optimal number of shelves for a height of 2000 mm |
| The way to ensure the stability of the rack |
|---|
| The rack is anchored to the wall |
| The rack is separated from the wall by a spacer |
| The rack is without spacers |
| Atypical design |
|---|
| Type design |
| Atypical design |
| Type design 0 - Unique specification out of offered versions Atypical design Q - atypical design that cannot be uniquely specified by a code |
